Android培訓實戰教程之事件傳遞

更新時間:2015年12月28日14時02分 來源:傳智播客Android培訓學院 瀏覽次數:

Touch事件傳遞和攔截機制

關于touch事件的主要方法介紹
1. ViewGroup的子類(容器類,如:LinearLayout,RelativeLayout等)
    1. dispatchTouchEvent(MotionEvent ev)  事件的分發
    2. onInterceptTouchEvent(MotionEvent ev)  事件的攔截
    3. onTouchEvent(MotionEvent ev)  事件的處理
2. View的子類(非容器類,如:TextView,ImageView等)
    1. dispatchTouchEvent(MotionEvent ev)  事件的分發
    2. onTouchEvent(MotionEvent ev)  事件的處理

 區別:
    非容器類沒有onInterceptTouchEvent(MotionEvent ev)  事件的攔截



下面是測試案例的主要代碼

1. 打印日志的類

        public class LogUtils {
            public static void printLog(String tag,MotionEvent ev,String touchName) {
                switch (ev.getAction()) {
                case MotionEvent.ACTION_DOWN:
                    //按下
                    Log.i(tag, touchName + "按下");
                    break;
                case MotionEvent.ACTION_MOVE:
                    //按下
                    Log.d(tag, touchName + "移動");
                    break;
                case MotionEvent.ACTION_UP:
                    //按下
                    Log.e(tag, touchName + "松開");
                    break;

                default:
                    break;
                }
            }
        }

2. 第一個容器類(為了方便布局,本案例中用FrameLayout做基類,在事件攔截機制中和直接繼承ViewGroup類一致,因為FrameLayout沒有覆蓋ViewGroup的上面三個touch方法)

        public class ViewGroupOne extends FrameLayout {

            public ViewGroupOne(Context context, AttributeSet attrs) {
                super(context, attrs);
                // TODO Auto-generated constructor stub
            }

            public ViewGroupOne(Context context) {
                super(context);
                // TODO Auto-generated constructor stub
            }

            //分發事件
            @Override
            public boolean dispatchTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupOne",ev, "dispatchTouchEvent");

                return super.dispatchTouchEvent(ev);
            }

            //攔截事件
            @Override
            public boolean onInterceptTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupOne",ev, "onInterceptTouchEvent");
                return super.onInterceptTouchEvent(ev);
            }

            //處理事件
            @Override
            public boolean onTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupOne",ev, "onTouchEvent");
                return super.onTouchEvent(ev);
            }

        }

3. 第二個容器類

        public class ViewGroupTwo extends FrameLayout {

            public ViewGroupTwo(Context context, AttributeSet attrs) {
                super(context, attrs);
                // TODO Auto-generated constructor stub
            }

            public ViewGroupTwo(Context context) {
                super(context);
                // TODO Auto-generated constructor stub
            }

            //分發事件
            @Override
            public boolean dispatchTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupTwo",ev, "dispatchTouchEvent");
                return super.dispatchTouchEvent(ev);
            }

            //攔截事件
            @Override
            public boolean onInterceptTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupTwo",ev, "onInterceptTouchEvent");
                return super.onInterceptTouchEvent(ev);
            }

            //處理事件
            @Override
            public boolean onTouchEvent(MotionEvent event) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupTwo",event, "onTouchEvent");
                return super.onTouchEvent(event);
            }

        }

4. 非容器類

        public class MyView extends View {

            public MyView(Context context, AttributeSet attrs) {
                super(context, attrs);
                // TODO Auto-generated constructor stub
            }

            public MyView(Context context) {
                super(context);
                // TODO Auto-generated constructor stub
            }

            // 分發事件
            @Override
            public boolean dispatchTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                LogUtils.printLog("MyView",ev, "dispatchTouchEvent");
                return super.dispatchTouchEvent(ev);
            }

            // 處理事件
            @Override
            public boolean onTouchEvent(MotionEvent event) {
                // TODO Auto-generated method stub
                LogUtils.printLog("MyView",event, "onTouchEvent");
                return super.onTouchEvent(event);
            }

        }

5. 主界面的布局

        <RelativeLayout xmlns:android="http://schemas.android.com/apk/res/android"
            xmlns:tools="http://schemas.android.com/tools"
            android:layout_width="match_parent"
            android:layout_height="match_parent"
            android:paddingBottom="@dimen/activity_vertical_margin"
            android:paddingLeft="@dimen/activity_horizontal_margin"
            android:paddingRight="@dimen/activity_horizontal_margin"
            android:paddingTop="@dimen/activity_vertical_margin"
            tools:context=".MainActivity" >

            <com.itheima13.eventdemo.ViewGroupOne
                android:layout_width="200dip"
                android:layout_height="200dip"
                android:background="#ff0000" >

                <com.itheima13.eventdemo.ViewGroupTwo
                    android:layout_width="150dip"
                    android:layout_height="150dip"
                    android:background="#00ff00" >

                    <com.itheima13.eventdemo.MyView
                        android:layout_width="100dip"
                        android:layout_height="100dip"
                        android:background="#0000ff" />
                </com.itheima13.eventdemo.ViewGroupTwo>
            </com.itheima13.eventdemo.ViewGroupOne>

        </RelativeLayout>

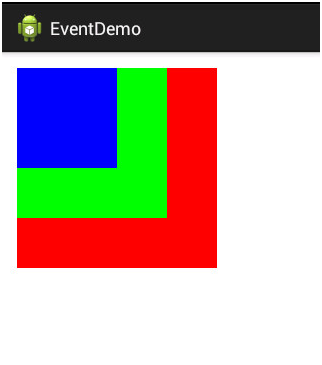

    預覽結果如下圖(紅色是ViewGroupOne,綠色是ViewGroupTwo,藍色是MyView):

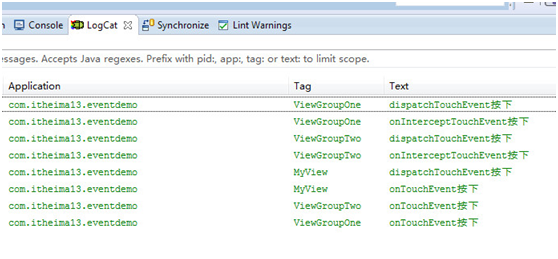

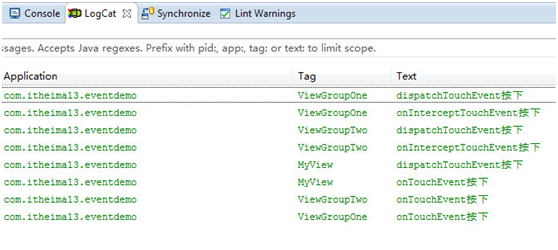

上面原始代碼都是默認的情況,運行后點擊藍色區域(按下,移動,松開)結果如圖:

總結: 默認情況只相應touch事件的down狀態,而且事件默認傳遞到最內層的子控件(MyView)onTouchEvent方法,由于默認MyView的onTouchEvent的方法沒有處理,所以事件依次回傳至父控件(ViewGroupTwo,ViewGroupOne)的onTouchEvent方法,由于每層都沒處理,所以事件回傳至最外層父控件后消失


由于情況復雜,下面以三個方法為核心介紹所有情況。(一個案例測試一種情況,每個案例的代碼改變都是在上面的基礎代碼上修改測試,也就是每個案例每種情況的代碼都是獨立的,只需參考上面的基本代碼和案例中每種情況修改的代碼即可。)

dispatchTouchEvent(MotionEvent ev)方法

* 有三種情況
    * 直接返回true
        * 只修改ViewGroupTwo的dispatchTouchEvent方法測試

                //分發事件
                @Override
                public boolean dispatchTouchEvent(MotionEvent ev) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",ev, "dispatchTouchEvent");
                    return true;
                }

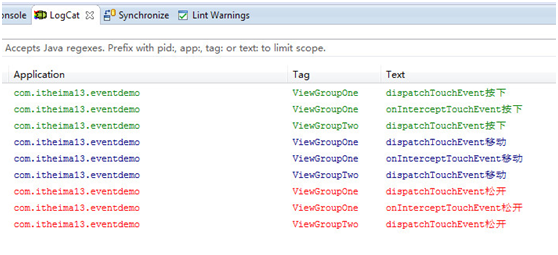

         運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:
        * 只修改MyView的dispatchTouchEvent方法測試

                @Override
                public boolean dispatchTouchEvent(MotionEvent ev) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("MyView",ev, "dispatchTouchEvent");
                    return true;//super.dispatchTouchEvent(ev);
                }

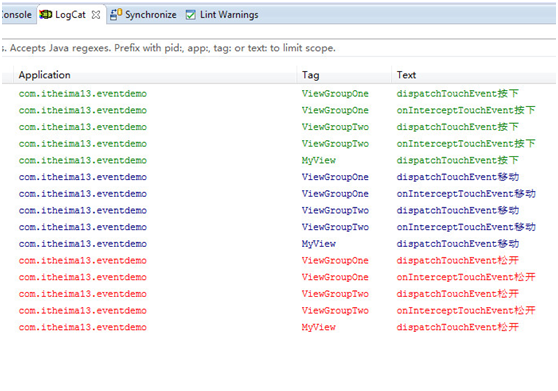

        運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

        結果分析:
        事件傳遞至子控件的dispatchTouchEvent終止。事件只有按順序傳遞,沒有回傳情況。并且事件的三種情況(down,move,up)都有處理回調

    * 直接返回false
        * 只修改ViewGroupTwo的dispatchTouchEvent方法測試

                @Override
                public boolean dispatchTouchEvent(MotionEvent ev) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",ev, "dispatchTouchEvent");
                    return false;//super.dispatchTouchEvent(ev);
                }

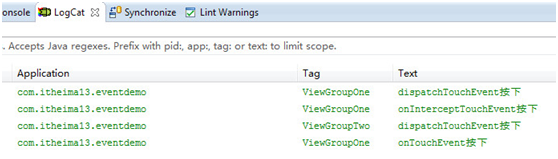

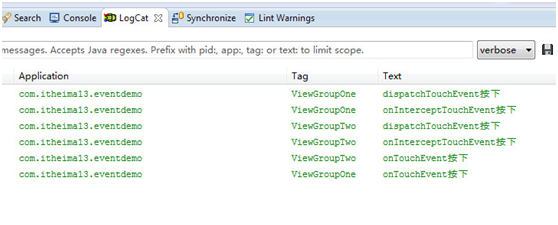

        運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

        * 只修改MyView的dispatchTouchEvent方法測試

                // 分發事件
                @Override
                public boolean dispatchTouchEvent(MotionEvent ev) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("MyView",ev, "dispatchTouchEvent");
                    return false;//super.dispatchTouchEvent(ev);
                }

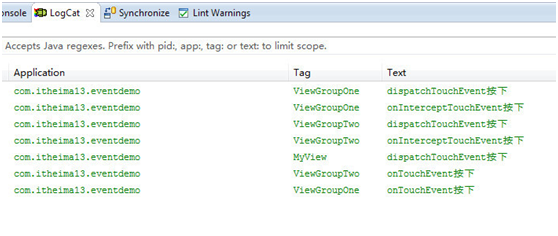

        運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

     結果分析:
     事件傳遞至當前控件的dispatchTouchEvent終止,并且事件回傳給父控件的onTouchEvent方法,此過程中只相應事件的down狀態

    * 直接調用super.dispatchTouchEvent(ev);

    結果分析:默認情況,直接調用ViewGroup的dispatchTouchEvent(ev)方法,事件會傳遞給當前的控件的onInterceptTouchEvent(MotionEvent ev)方法。

onInterceptTouchEvent(MotionEvent ev) 方法
* 有三種情況
    * 直接返回true
        * 只修改ViewGroupTwo的onInterceptTouchEvent方法

                //攔截事件
                @Override
                public boolean onInterceptTouchEvent(MotionEvent ev) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",ev, "onInterceptTouchEvent");
                    return true;//super.onInterceptTouchEvent(ev);
                }

        運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

    結果分析:touch事件被當前控件攔截,不傳遞給子控件,并調用自己的onTouchEvent方法處理事件
    * 直接返回false
        * 只修改ViewGroupTwo的onInterceptTouchEvent方法

                //攔截事件
                @Override
                public boolean onInterceptTouchEvent(MotionEvent ev) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",ev, "onInterceptTouchEvent");
                    return false;//super.onInterceptTouchEvent(ev);
                }

        運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

   結果分析:touch事件傳遞給子控件,由子控件處理事件

    * 直接調用super.onInterceptTouchEvent(ev) (調用ViewGroup的方法)

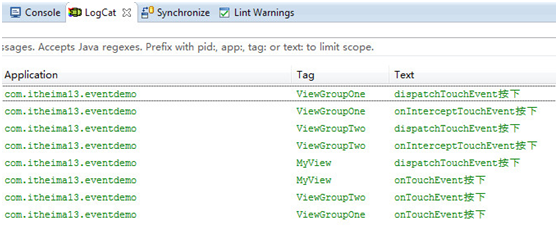

        運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:
    結果分析:touch事件傳遞給子控件,由子控件處理事件(與直接返回false類似)

 onTouchEvent(MotionEvent ev) 方法
* 有三種情況
    * 直接返回true
        * 只修改ViewGroupTwo的onTouchEvent方法

                //處理事件
                @Override
                public boolean onTouchEvent(MotionEvent event) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",event, "onTouchEvent");
                    return true;//super.onTouchEvent(event);
                }

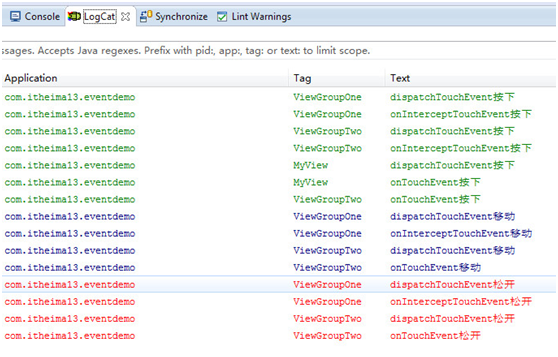

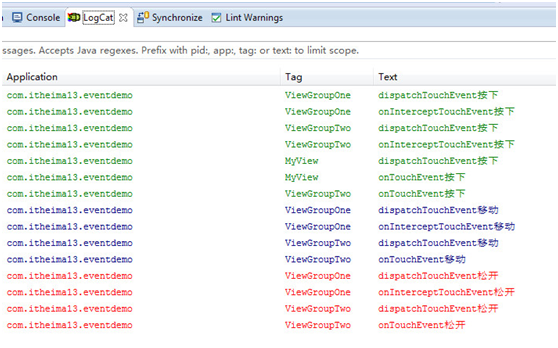

            運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

    結果分析:down狀態:當touch事件回傳給當前控件的時候,由于返回ture,所有事件回傳終止。針對move和up狀態:事件到當前的onTouchEvent方法終止。也就是說子控件無法響應事件。

    * 直接返回false
        * 只修改ViewGroupTwo的onTouchEvent方法

                //處理事件
                @Override
                public boolean onTouchEvent(MotionEvent event) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",event, "onTouchEvent");
                    return false;//super.onTouchEvent(event);
                }

            運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

    >結果分析:事件回傳給父控件

    * 直接調用super.onTouchEvent(ev)
        * 只修改ViewGroupTwo的onTouchEvent方法

                //處理事件
                @Override
                public boolean onTouchEvent(MotionEvent event) {
                    // TODO Auto-generated method stub
                    LogUtils.printLog("ViewGroupTwo",event, "onTouchEvent");
                    return super.onTouchEvent(event);
                }

            運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

    >結果分析:事件回傳給父控件

事件反向攔截

主要是反向攔截父控件的onInterceptTouchEvent

* 沒申請反向攔截父控件onInterceptTouchEvent的方法

    1. 只在ViewGroupTwo中覆蓋了onTouchEvent方法,并且事件消費

            //處理事件
            @Override
            public boolean onTouchEvent(MotionEvent event) {
                // TODO Auto-generated method stub
                LogUtils.printLog("ViewGroupTwo",event, "onTouchEvent");
                return true;//super.onTouchEvent(event);
            }

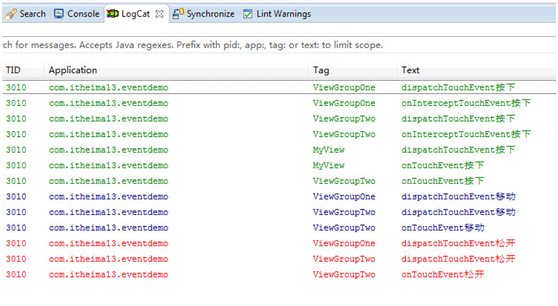

    運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:
* 申請反向攔截父控件的onInterceptTouchEvent的方法
    1. 在上面的代碼基礎上,添加dispatchTouchEvent方法的覆蓋

            @Override
            public boolean dispatchTouchEvent(MotionEvent ev) {
                // TODO Auto-generated method stub
                requestDisallowInterceptTouchEvent(true);
                LogUtils.printLog("ViewGroupTwo",ev, "dispatchTouchEvent");
                return super.dispatchTouchEvent(ev);
            }
    注意多了requestDisallowInterceptTouchEvent(true);方法調用,該方法是攔截父控件的onInterceptTouchEvent方法的執行(針對move,up狀態)

    運行后對藍色區域做了按下,移動,松開的操作,運行結果如下圖:

    >結果分析: 申請反向攔截后,父控件的onInterceptTouchEvent方法將不再執行,案例如:智慧北京項目的輪播圖事件反攔截

    >源碼解釋:
        requestDisallowInterceptTouchEvent(true); 方法源碼如:

        public void requestDisallowInterceptTouchEvent(boolean disallowIntercept) {

                if (disallowIntercept == ((mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0)) {
                    // We're already in this state, assume our ancestors are too
                    return;
                }

                if (disallowIntercept) {
                    //主要是記錄攔截的標記 看dispatchTouchEvent方法的代碼片段
                    mGroupFlags |= FLAG_DISALLOW_INTERCEPT;
                } else {
                    mGroupFlags &= ~FLAG_DISALLOW_INTERCEPT;
                }

                // Pass it up to our parent
                if (mParent != null) {
                    //繼續設置父控件的攔截模式
                    mParent.requestDisallowInterceptTouchEvent(disallowIntercept);
                }
            }

         dispatchTouchEvent方法代碼片段:
            對上面設置的狀態值mGroupFlags判斷
            final boolean disallowIntercept = (mGroupFlags & FLAG_DISALLOW_INTERCEPT) != 0;
            if (!disallowIntercept) {//根據狀態值是否調用onInterceptTouchEvent
                intercepted = onInterceptTouchEvent(ev);
                ev.setAction(action); // restore action in case it was changed
            } else {
                intercepted = false;
            }
        要點解析:
            看運行效果圖可知,down事件執行的時候,已經設置了反向攔截的狀態,所有到move,up狀態執行的時候,判斷就起到了攔截的效果

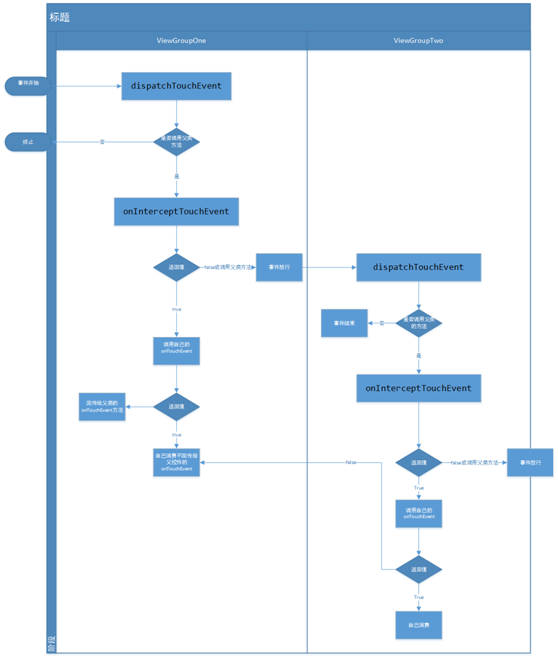

#### 事件傳遞和攔截流程圖(針對down事件的流程)


 實際操作會以下2點就可以了

1. 只需要做自己onTouchEvent方法的事件處理,并且返回值設置為true就可以滿足自己事件處理
2. 申請不讓父控件的onInterceptTouchEvent的方法執行
