Jasper+jaspersoftStudio導出用戶列表數據教程

更新時間:2020年07月22日15時53分 來源:傳智播客 瀏覽次數:

場景說明

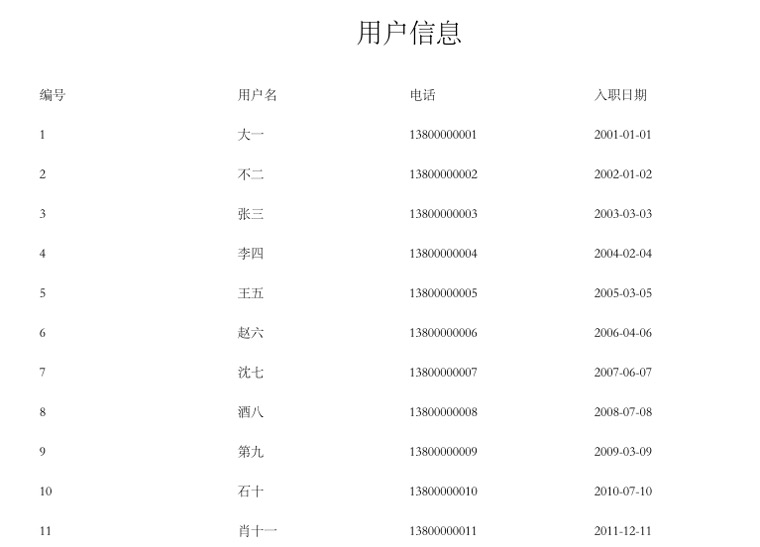

在使用Jasper+jaspersoftStudio導出用戶列表數據導出(如下圖)是比較簡單的，就是把用戶列表數據，一個List集合放到 JRBeanCollectionDataSource中即可。

Jasper+jaspersoftStudio01

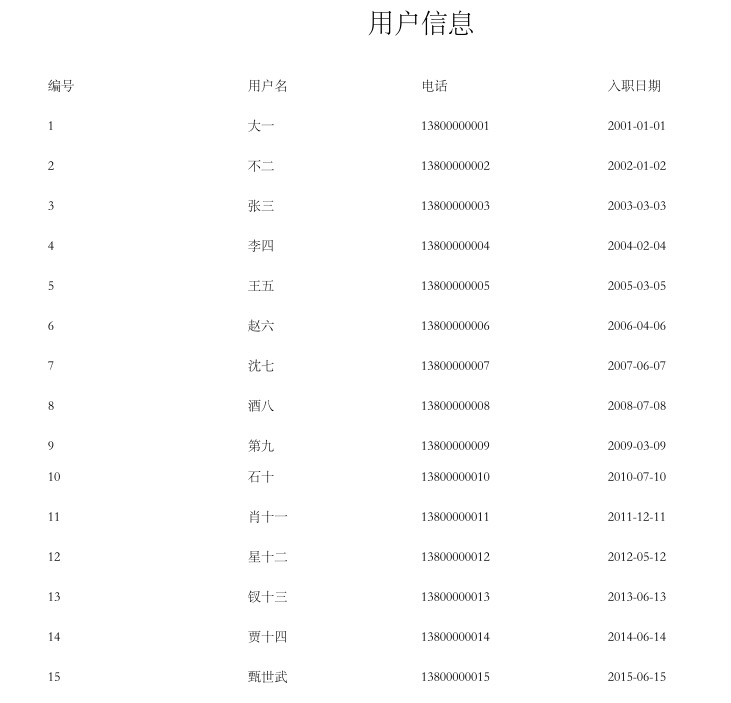

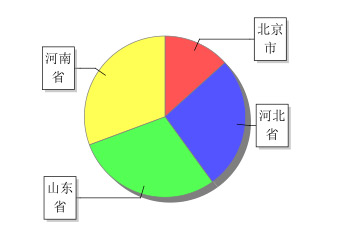

但是如果有多個List集合需要導出呢，這個應該怎么辦?比如：一個用戶的集合List，還有一個統計報表(也需要一個List集合數據)

Jasper+jaspersoftStudio02
Jasper+jaspersoftStudio03

實現思路

需要用到子數據集，如果多出幾個List,就創建多少個子數據集Dataset

·動手實現

·制作模板

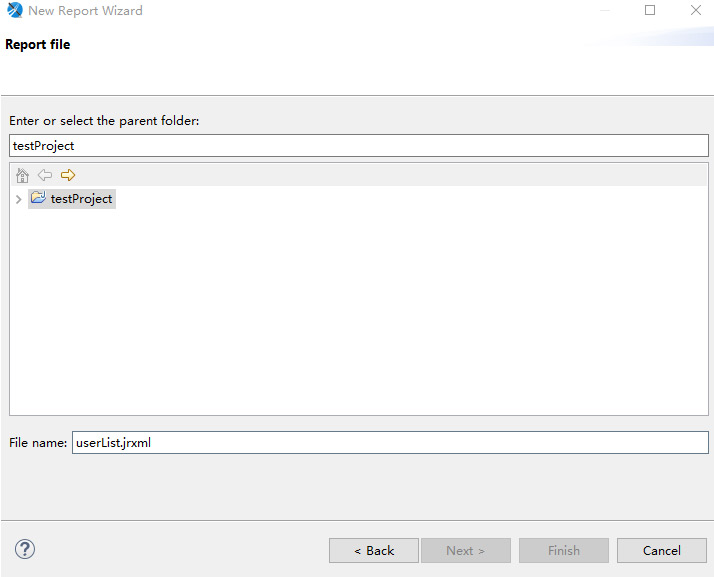

第一步：新建一個Jasper Report模板，選擇 Blank A4 (A4紙大小的模板)，然后 Next 命名為userList.jrxml.

Jasper+jaspersoftStudio04


第二步：刪除無用的Band，只留 Title 、Colunn Header、Detail、Summary

Jasper+jaspersoftStudio04


第三步：創建Filed和parameter

①、創建Filed，這幾個Field用來導出用戶列表的

Jasper+jaspersoftStudio06

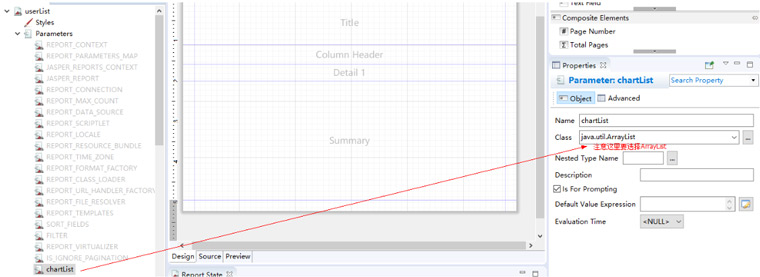

②、創建parameter，名稱是chartList，指定類型是ArrayList，這個參數是用來放圖表中所需數據的

Jasper+jaspersoftStudio07

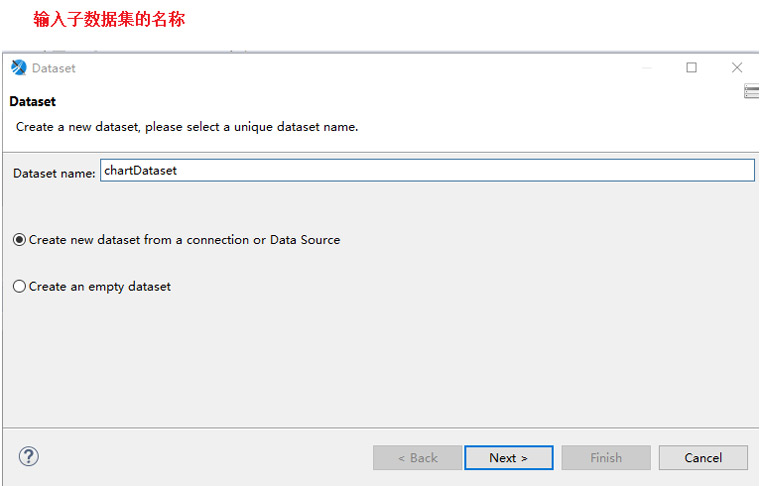

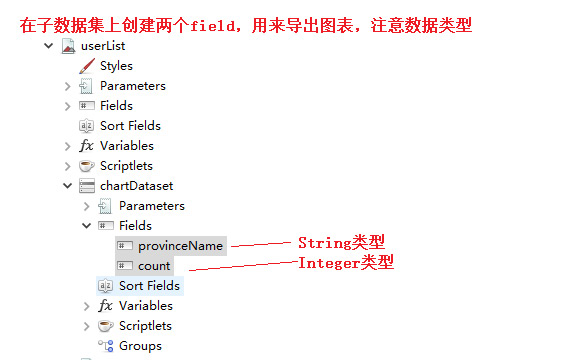

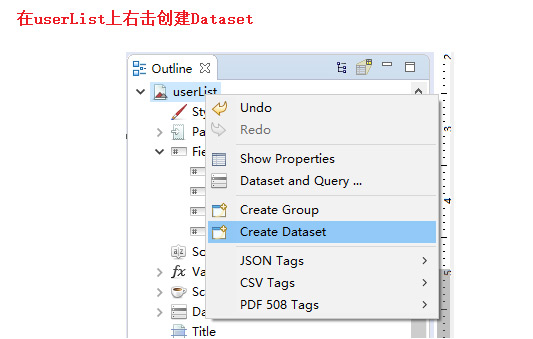

第四步：創建子數據集

Jasper+jaspersoftStudio08

Jasper+jaspersoftStudio09

Jasper+jaspersoftStudio10

Jasper+jaspersoftStudio11

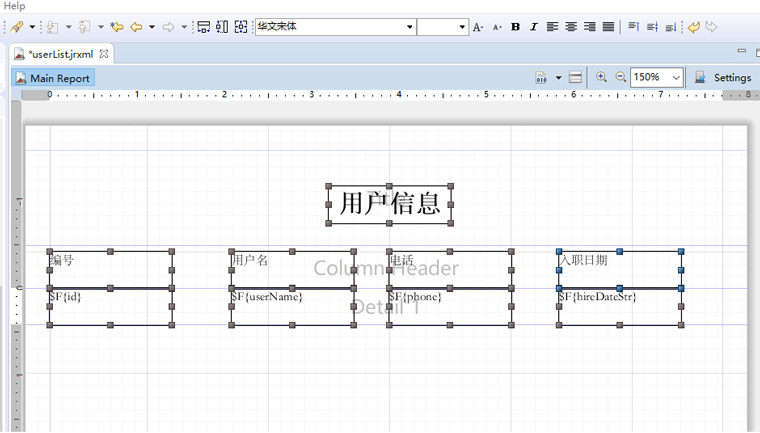

第五步：在模板上拖拽用戶列表數據，注意指定中文名稱

Jasper+jaspersoftStudio12

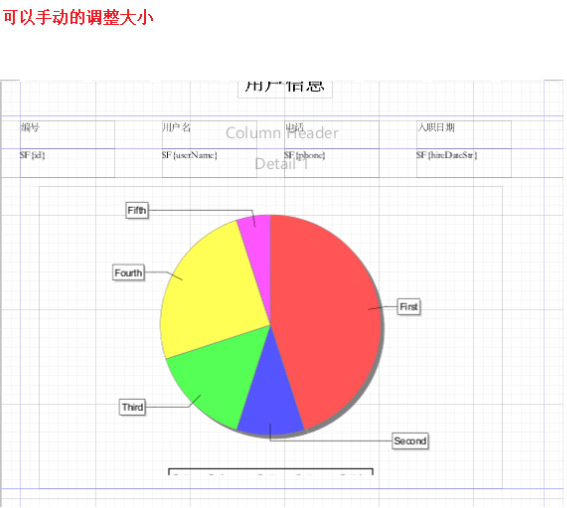

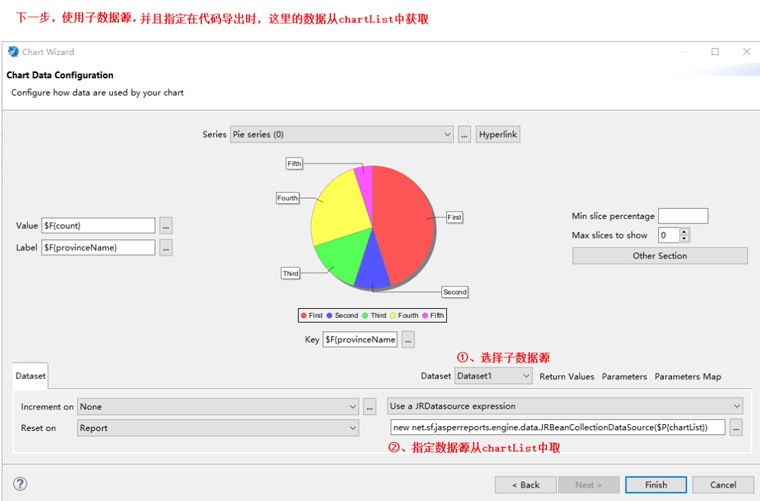

第六步：在模板上拖拽圖表

Jasper+jaspersoftStudio13

Jasper+jaspersoftStudio14
Jasper+jaspersoftStudio15

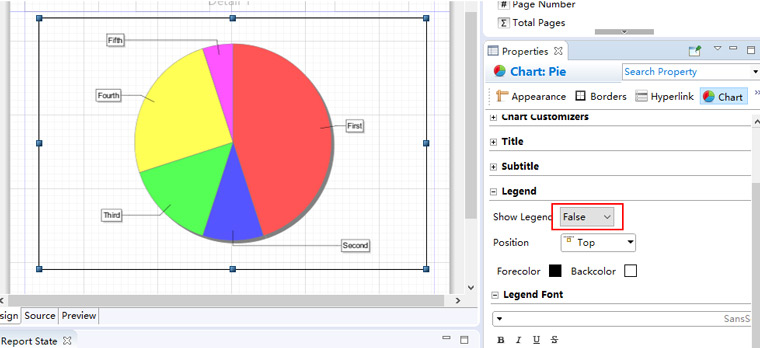

注意：我這里的是否顯示圖例改成了false,不然導出會失敗

Jasper+jaspersoftStudio16

代碼導出

準備兩個實體類：

用來導出用戶列表

package com.itheima.pojo;
import lombok.Data;
/**
 * 員工
 */
@Data
public class People {
    private Long id;
    private String userName; //員工名
    private String phone;    //手機號
    private String province; //省份名
    private String hireDateStr; // 入職日期
    public People(Long id, String userName, String phone, String province, String hireDateStr) {
        this.id = id;
        this.userName = userName;
        this.phone = phone;
        this.province = province;
        this.hireDateStr = hireDateStr;
    }
}


用來導出圖表

package com.itheima.pojo;
import lombok.Data;
@Data
public class PeopleCount {
    private String provinceName; //省份名
    private Integer count; //數量
    public PeopleCount(String provinceName, Integer count) {
        this.provinceName = provinceName;
        this.count = count;
    }
}

代碼實現PDF導出

package com.itheima.test;
import com.itheima.pojo.People;
import com.itheima.pojo.PeopleCount;
import net.sf.jasperreports.engine.JasperExportManager;
import net.sf.jasperreports.engine.JasperFillManager;
import net.sf.jasperreports.engine.JasperPrint;
import net.sf.jasperreports.engine.data.JRBeanCollectionDataSource;
import java.io.FileInputStream;
import java.io.FileOutputStream;
import java.util.*;
public class PdfDemo {
    public static  void main(String[] args) throws Exception{
        //        1、獲取模板文件
        String templateFile = "d://userList.jasper";
        //       2、準備數據
        //          2.1 列表數據
        JRBeanCollectionDataSource dataSource = new JRBeanCollectionDataSource(getListData());
        //         2.2圖表數據
        Map params = new HashMap();
        params.put("chartList",getChartListData());
        JasperPrint jasperPrint = JasperFillManager.fillReport(new FileInputStream(templateFile), params,dataSource);
        JasperExportManager.exportReportToPdfStream(jasperPrint,new FileOutputStream("d://用戶列表數據.pdf"));
    }
    public static List<People> getListData(){
        List<People> peopleList = new ArrayList<>();
        peopleList.add(new People(1L, "大一","13800000001","北京市","2001-01-01"));
        peopleList.add(new People(2L, "不二","13800000002","河北省","2002-01-02"));
        peopleList.add(new People(3L, "張三","13800000003","河北省","2003-03-03"));
        peopleList.add(new People(4L, "李四","13800000004","河北省","2004-02-04"));
        peopleList.add(new People(5L, "王五","13800000005","河北省","2005-03-05"));
        peopleList.add(new People(6L, "趙六","13800000006","河北省","2006-04-06"));
        peopleList.add(new People(7L, "沈七","13800000007","河北省","2007-06-07"));
        peopleList.add(new People(8L, "酒八","13800000008","河北省","2008-07-08"));
        peopleList.add(new People(9L, "第九","13800000009","山東省","2009-03-09"));
        peopleList.add(new People(10L, "石十","13800000010","山東省","2010-07-10"));
        peopleList.add(new People(11L, "肖十一","13800000011", "山東省","2011-12-11"));
        peopleList.add(new People(12L, "星十二","13800000012", "山東省","2012-05-12"));
        peopleList.add(new People(13L, "釵十三","13800000013", "山東省","2013-06-13"));
        peopleList.add(new People(14L, "賈十四","13800000014", "山東省","2014-06-14"));
        peopleList.add(new People(15L, "甄世武","13800000015", "山東省","2015-06-15"));
        return peopleList;
    }
    public static List<PeopleCount> getChartListData(){
        List<PeopleCount> peopleCountList = new ArrayList<>();
        peopleCountList.add(new PeopleCount("北京市",100));
        peopleCountList.add(new PeopleCount("河北省",200));
        peopleCountList.add(new PeopleCount("山東省",220));
        peopleCountList.add(new PeopleCount("河南省",230));
        return peopleCountList;
    }
}

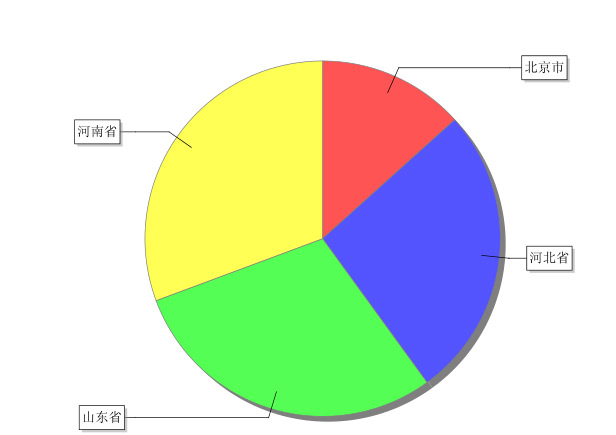

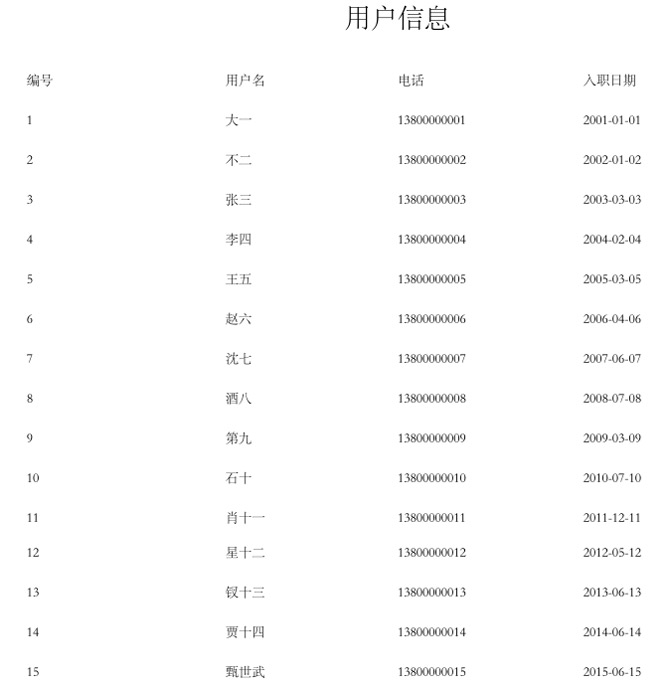

效果如下：

Jasper+jaspersoftStudio17

Jasper+jaspersoftStudio18
